Concrete Mixing semi trailer

Restricted by laws and regulations, as the control of overloading in various places becomes stricter, the transportation of cement, silt, sand and gravel in some cities has changed from a 4-axis mixer truck to a mixer semi-trailer with more axles.

Product Introduction

Restricted by laws and regulations, as the control of overloading in various places becomes stricter, the transportation of cement, silt, sand and gravel in some cities has changed from a 4-axis mixer truck to a mixer semi-trailer with more axles. For customers, a single 6 to 8 square meters It will be extremely difficult to maximize profits due to the volume of transportation. Under such a background, compliant and large-scale concrete mixer semi-trailers have become an urgent need for the industry. We strictly follow the requirements of laws and regulations, and the maximum transportation capacity of the mixer semi-trailer produced reaches 13-14m3. In addition, it uses high-strength wear-resistant steel, lightweight rims, aluminum alloy accessories, etc., with light weight and further improved transportation volume. It optimizes the frame design, rationally arranges the bodywork, optimizes power matching, coupled with intelligent high-end configuration, the convenience and safety of the vehicle are guaranteed.

Concrete-Mixing-semi-trailer

Vehicle parameter

Outline dimension

9970x2500x3940mm

Weight

9800kg

Mixing Drum parameter

Mixing drum material

High quality wear-resistance steel

Q345

Drum body thickness: 5mm, End cover thickness:6mm

Agitating capacity

12M3

Charging rate

≥3 m3/min

Top feed hopper dimension

≥650 mm

Discharging rate

≥2 m3/min

Residual rate

≤0.5%

Water supply

Baric water supply system

Water tank capacity

450L

Radiator

18L

Reduction gear

TOP T68 Reducer, Italy technology

Hydraulic pump

EATON 54, Italy technology

Hydraulic motor

EATON 54, Italy technology

Accessory

Tool box

Axle

FUWA 13t  (2 axles)

Suspension

spring plate

Tyre

11.00R20(12 PR)    12 pieces

Rim

8.0-20  12 pieces

Supporting leg

28t

King pin

90#

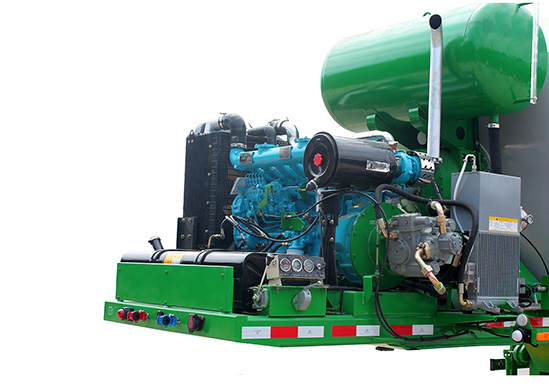

Diesel Engine brand

Weichai brand

Model

PHF6100ZLD1
