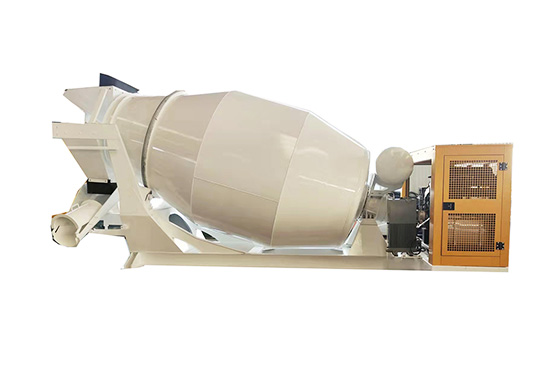

1. The thermal efficiency of the diesel stirring top is high, and the fuel consumption is low.
2. It can be fixed and used as a drum mixer, or it can be welded with the chassis.
1. The thermal efficiency of the diesel stirring top is high, and the fuel consumption is low.
2. It can be fixed and used as a drum mixer, or it can be welded with the chassis.
3. The maintenance and operation of the concrete mixing and loading machine is simple, and fewer operators are required. easy maintenance
4. Compared with traditional mixer trucks, the price of mixer top is very cheap
5. Although it is only equipped with a diesel unit on a mixer, the function is the same as that of a mixer truck, and the capacity can also be 3-10 cubic meters
|
Mixing Capacity |
6CBM |
|
Geometrical capacity (m³) |
12.5 |
|
Body thickness of cover / middle / rear(mm) |
8\6\6 |
|
Concrete charging speed (m³/ min) |
3 |
|
Concrete discharging speed (m³/ min) |
2 |
|
Tank rolling speed (r/min) |
0~14 |
|
Discharging residual ratio (%) |
<0.9 |
|
Water Tank Capacity (L) |
440 |
|
Model/Brand/Origin of hydraulic pump |
089 / ARK / Italy |
|
Model/Brand/Origin of hydraulic motor |
090 / ARK / Italy |
|
Model/Brand/Origin of reductor |
P75S / TOPUNION / Italy |
|
Other |
With diesel engine |
|
Recommended Wheelbase of chassis |
6x4:4000mm+1350mm |
|
Color |
according to the customer's request |
