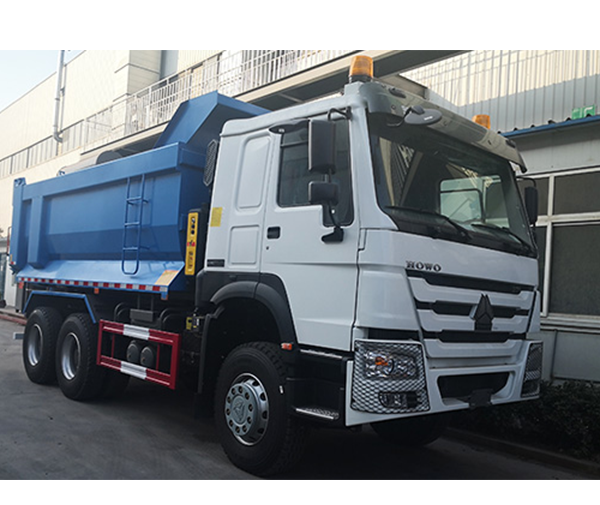

Dump truck

Send Email Inquiry Now

Product Introduction

1. Use of domestic first-class well-known brands of high-quality national standard Baosteel and Shousteel raw materials
2. Workshop with first-class production equipment, assembly line operation
3. Adopt CNC cutting and seamless production technology
4. The dump truck is lifted by a well-known brand in China: Haiwo hydraulic cylinder
5. Colour, size, capacity, plate thickness, box shape, can be customized independently
6. Unique protective light cover and rotating warning light are added to the export truck
7. First-class baking paint and spray paint technology, high durability

Application

The two common types of dump trucks are 6*4 and 8*4. Commonly used for: urban dumping, engineering construction, land infrastructure, mineral transportation.

Because the loading compartment can automatically tip over to unload at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special vehicle for transportation.

Maintenance skills

1. The new dump truck or the overhauled truck should be tested for trial operation, so that the lifting process of the cabin is stable and there is no movement.

2. When using, all parts should be properly selected according to the regulations, which greatly saves unloading time and labor, and the lifting mechanism strictly replaces the oil on schedule.

3. Ship according to the rated loading capacity, and overloading is strictly prohibited.

Dump truck

PARAMETERS
Dimension		8350×2500×3450mm
Box size		5000×2200×1300mm
Loading		30000kg
Tare Weight		14000kg
Warranty		12 months
Axle		Front axle 9 tons (HF9T) , rear axle 16 tons(HC16T)
Motor		WD615.47 371HP Euro II
Transmission		HW19710 Heavy Duty 10-speed gearbox, 2 reverse gears
Frame		Straight through beam
Tyres		10 pc with 1 spare tire, 12.00R22.5, 2040/1850/1850
Wheelbase		3625+1350mm
Suspension		front 1500, rear 1875 (mm)
Departure corner		front 30, rear 27
Leaf spring		Front 9, rear 10
ABS & A/C		Have
Bottom and side plate		Q235 material, bottom thickness 8 mm and side thickness 6 mm
Sleeper		Have one.
steering wheel		LHD
Voltage		24V
Braking System		Air brake, dump
Fuel tank		300L
Light		Front and rear profile light, rear tail light assembly, side return reflector
Toolbox		Have
PTO Steering		ZF8118, hydraulic power assist
Water cooling		71 degree thermostat, Automatic
Hydraulic cylinder		Mid-top/rear discharge type
Remark		pictures for reference, and logo can be customized.
