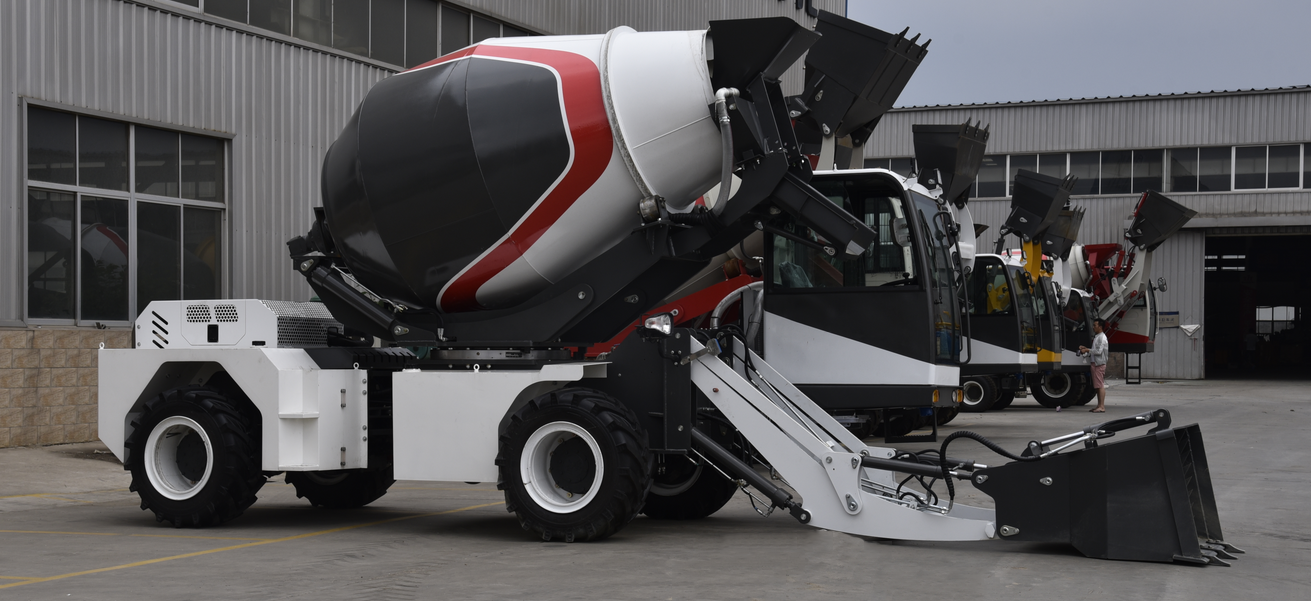

Self-loading mixer truck
A self-loading mixer truck is a highly efficient and versatile solution for concrete mixing and transportation. It allows for on-site mixing, tailoring the concrete quantity to project needs, reducing labor costs, and ensuring better quality control. Its compact design enables easy navigation in tight spaces, while the all-in-one operation minimizes waste and enhances project efficiency.
Self-loading mixer truck
Efficiency: Self-loading mixer trucks combine the functions of mixing, transporting, and discharging concrete in one machine, which significantly reduces the time required for each task. This leads to faster project completion.
Versatility: These trucks can operate in various environments, including remote job sites where traditional concrete supply may not be feasible. They can mix concrete on-site, ensuring that the quantities are tailored to specific project needs.
Reduced Labor Costs: With a self-loading mixer truck, fewer workers are needed on-site compared to using traditional concrete mixing and transport methods. The operator can load, mix, and pour concrete independently.
Higher Quality Control: Mixing concrete on-site allows for better quality control over the ingredient ratios and freshness of the mix. This reduces the risk of using an improperly mixed batch, which can lead to structural issues.
Cost-Effective: Investing in a self-loading mixer truck can reduce overall operational costs by minimizing the need for separate mixers, transport vehicles, and labor.
Easy Operation: Modern self-loading mixer trucks are equipped with user-friendly controls and systems, enabling operators to efficiently manage the mixing and loading processes without extensive training.
| Overall Dimensions（L×W×H） | 7040*2733*3091 |
| Wheel Base（mm） | 2570 |
| Curb Weight（Kg） | 6500 |
| Drive Form | 4*4 |
| Maximum Speed(Km/h): | 35 |
| Maximum Gradeability（°） | 40 |
| Minimum Ground Clearance（mm） | 270 |
| Engine | yuchai6105 Turbocharging |
| Roted power | 77.3KW |
| Transmission | JBJ-278 power shift gearbox, 4 fprward +4 back |
| Fuel tank | 120L |
| Hydraulic Oil tank（L） | 120L |
| Engine Oil Capacity（L） | 13 |
| Reducer | 3F-130K |
| motor | BMS-200 |
| Water tank | 750L |
| water siupply | time relay |
| Drum volume | 3.95M3 |
| Drum rotation speed | 20RPM |
| Concrete produced as | 2.6m3 / drum |
